Internal Line up Clamp (ILUC) - Pipe Alignment Clamp for Welding

When two pipes meet, precision is everything. A small misalignment inside the joint can lead to stress, weak welds, or costly rework. The  Internal Line-Up Clamp (ILUC) solves this problem.

The Internal Line-Up Clamp is a specialized tool used in the pipeline and fabrication industry to ensure perfect alignment of pipes before welding. By gripping the inside diameter of the pipe, the ILUC provides precise and stable positioning of the pipes, allowing welders to achieve strong, high-quality joints with minimal rework.

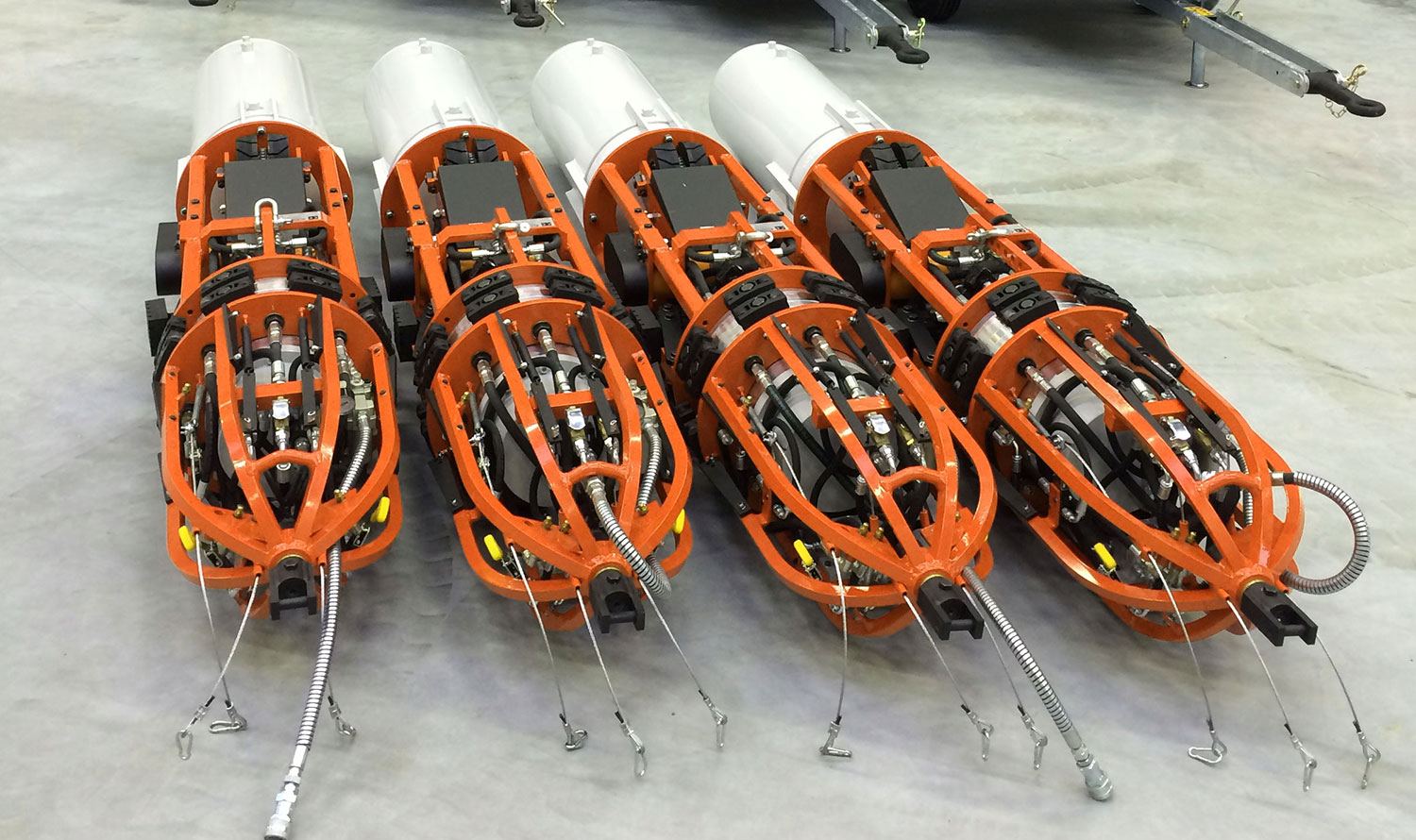

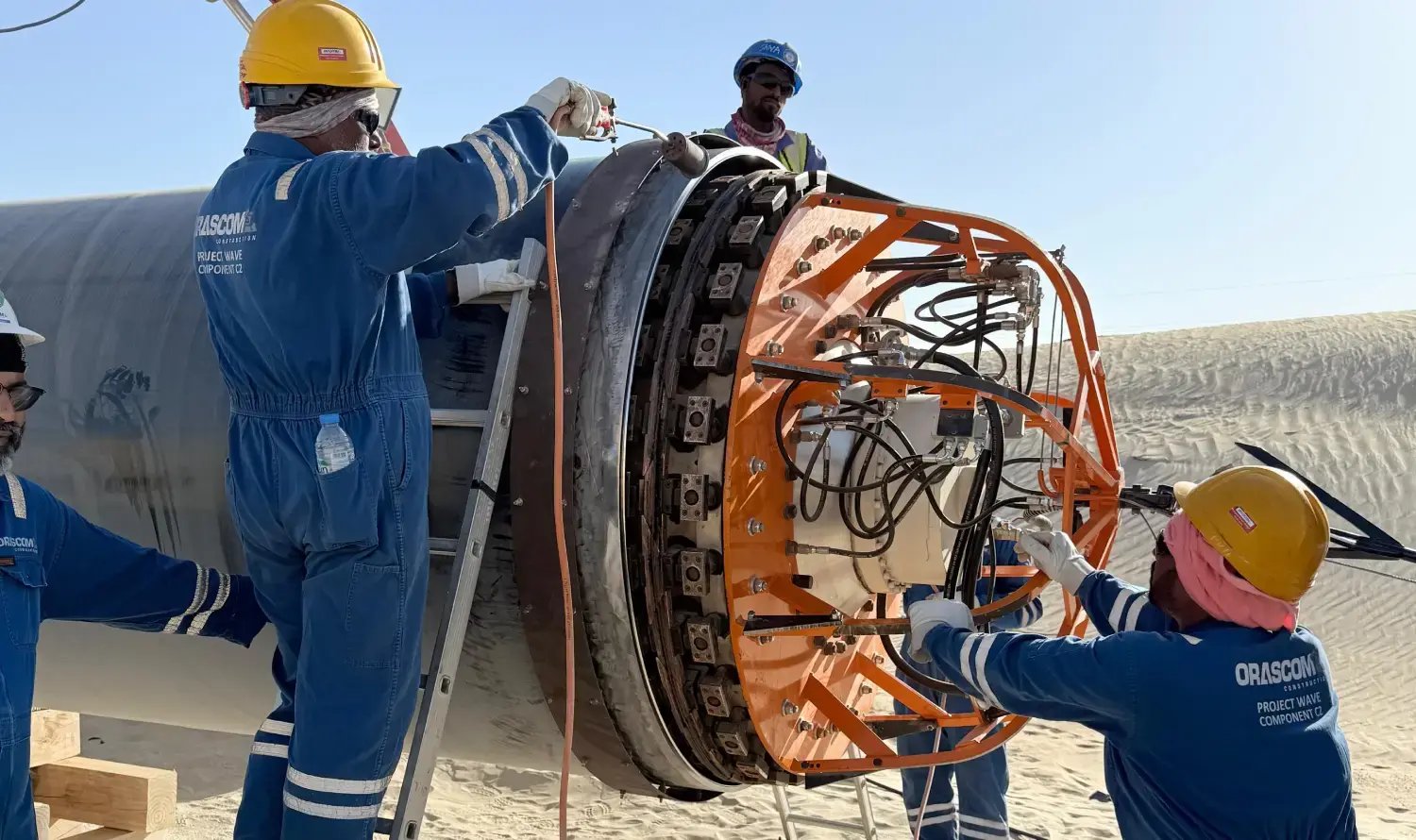

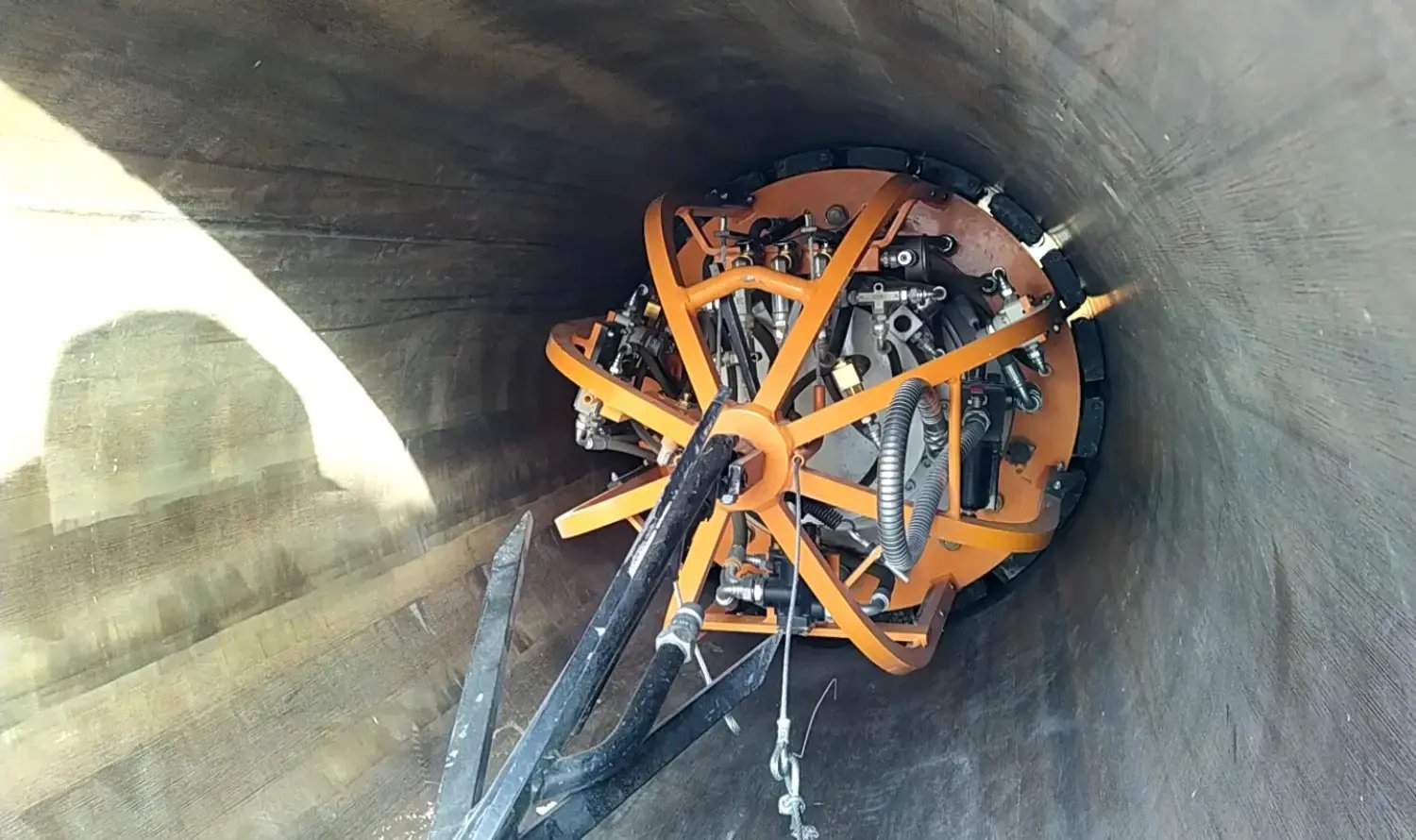

The ILUC slides easily into the open end of a pipe. At first, it sits loose, small enough to move freely. Then, with a simple turn of a handle or the push of air or hydraulic pressure, the expanding shoes inside the clamp press outward. Like strong hands pushing evenly in all directions, the shoes grip the inner wall of the pipe with steady force forcing both pipe ends into perfect alignment. Any small difference in roundness or fit is corrected instantly. The pipes become flush, concentric, and ready to weld.

From the outside, nothing gets in the welder’s way. The joint is clear, open, and perfectly held, allowing welding works to be performed quickly and securely. Once the welding is done, the clamp relaxes, the shoes retract, and the ILUC slides out just as easily as it went in.

The result? Pipes that fit together seamlessly, welds that last, and jobs completed faster with less rework.

Key features of an Internal Line up Clamp

• Accurate pipe alignment
  The expanding shoes of the ILUC locks in place inside the pipe, ensuring precise alignment and level pipe ends for a seamless connection. This eliminates common issues such as hi-lo, mismatched diameters, and uneven gaps, delivering a more reliable joint.
• Clear access for welding
  Since the clamp works internally, the outside of the pipe remains unobstructed, giving welders full access for tack welding and final welding.
• Fast and efficient setup
  The simple mechanism allows quick insertion and removal, reducing downtime and increasing productivity in both field and workshop environments.
• Durable construction
  Built from high-strength materials, the ILUC withstands tough site conditions, heavy use, and repeated clamping cycles.
• Improved weld quality
  Consistent alignment reduces stress points and weld defects, ensuring reliable, long-lasting pipeline performance.

Benefits of the Internal Line up Clamp

• Faster and reliable pipe fit-up and welding
• Reduced rework and repair costs
• Increased safety during handling
• Enhanced overall welding quality and efficiency
• Supports a wide range of pipeline diameters
• High clamping force for secure, consistent alignment
• Durable construction for demanding environments
• Easy to operate and maintain

Available options

• Internal Line up Clamps are manufactured in a range of sizes to cover pipe diameters from 6" up to 100".
• Copper shoes available upon request

• Reach rod & control cables can be extended up to 24m long upon request
• Air hose with fittings up to 30m long upon request
• Conversion kits for different diameters
• Optional ILUC version available for cement-lined pipes and coating cutbacks upon request
